redlining

Mark up the running app. Hand your coding agent the exact file and line.

Redlining, in the proofreader's sense: click an element or draw a box in your running app, write a note, and every annotation resolves to the file, line, host element and component owner chain. Your coding agent — Claude Code first, any other through the same file — applies the batch in one pass. Built for Next.js; runs on any page.

Get started Let an agent set it up Read the guide

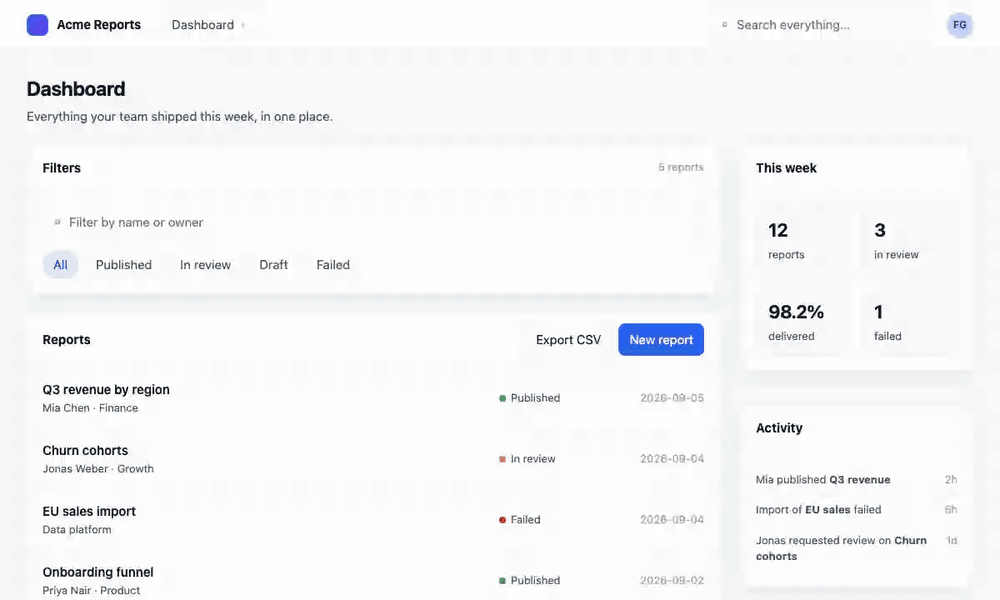

Redlining in use: the overlay opens, a nav element is clicked and annotated, a box is drawn for a new table, the list opens, and the session is saved to the project.

Three lines of setup

Wrap next.config with withRedlining(), mount <Redlining /> in the root layout, run npx redlining init. Identical in every project.

Zero production footprint

The loader only runs for the dev server, and the package's production build is a component that returns null. No bytes, no attributes, no routes in next build.

Server and Client Components

The anchor is a static attribute stamped at compile time, so it reaches the HTML regardless of where the component rendered. The owner chain comes from React's dev fiber tree.

Tweak, then export the numbers

Resize, nudge, restyle and retype directly in the page. The export carries every change as before → after next to the element's classes; the agent maps it to your utilities or tokens.

One command to apply

/redline in Claude Code reads .redlining/annotations.md, edits exactly the anchors listed, verifies in the running app, and reports per annotation. Any other agent gets the same file, or the prompt from the Copy button.

The loop

  1. Annotate. Press Alt+R. Select an element, draw a region, or move something; write a note.
  2. Save. ⌘+⏎ writes annotations.md, annotations.json and a screenshot with numbered pins into .redlining/.
  3. Apply. Run /redline, or hand .redlining/ to your agent. It edits the named files in order, verifies, and deletes the files.
  4. Repeat. Hot reload shows the result; the session stays until you clear it, so you can re-send with tweaks.

Supported setups

Everything that reads the DOM — select, draw, move, tweak with provenance, notes with reference images, the export — works on any page. The exact file:line needs stamped JSX (Next.js or Vite), and the component names need a framework that exposes them. See Other stacks.

Setup Status Precision
Next.js 16+, Turbopack or webpack, App Router Supported file:line + owner chain
Vite + React (redlining/vite) Supported file:line + owner chain
Any React app, overlay only Supported owner chain + CSS selector; Save downloads the files
Angular (dev mode), via redlining/standalone Supported component names + CSS selector; Save downloads the files
Vue, plain HTML, anything else, via redlining/standalone Supported CSS selector (+ Vue instance names); Save downloads the files
